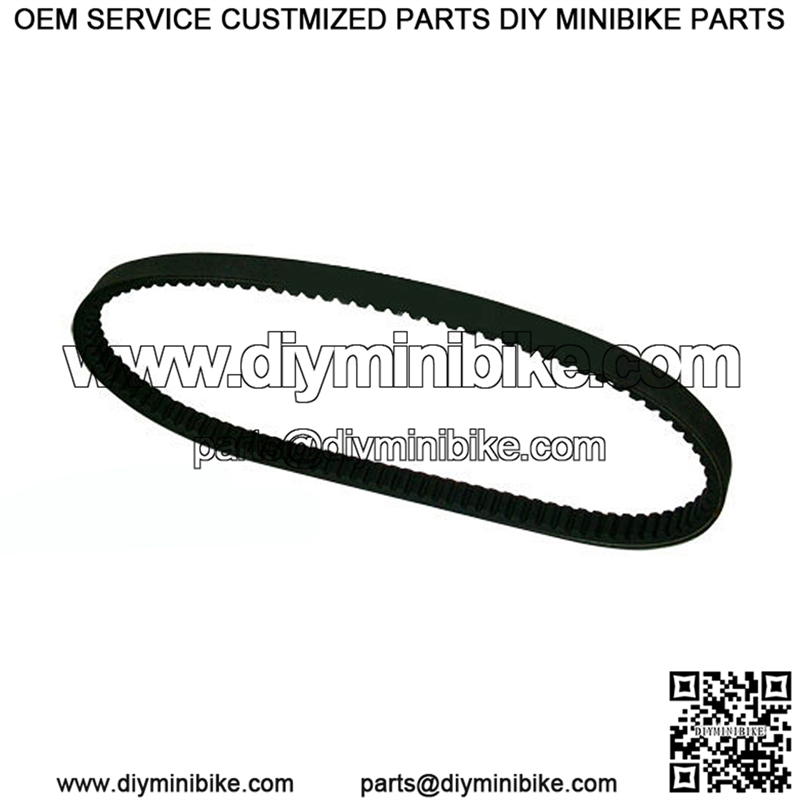

30 Series Belt Chart
Belts were used on Manco, Carter Bros, Murray, Hoffco, Kartco, . Mini-Bikes, ATVs and more

Series, Top Width & Part Number

Center Distance Setting

Belt Size

30 Series
3/4″ Asym
Kart Manufacturer #
6″ Driven

7″ Driven

Outer
Circum
203589A
994-70 Manco: 5959 6-15/16 to 7 NO FIT 27-1/32 203590A
994-75 Manco: 6959; ASW: 14704; Vector: 4170; Murray: 12-13053
Hammerhead: 9.110.018
7-1/8 to 7-3/16 6-1/4 to 6-5/16 28-21/64 203591A
994-80 : Q43203W 7-9/16 to 7-5/8 6-13/16 to 6-7/8 29-9/32 203592A
994-85 8-3/16 to 8-1/4 7-5/16 to 7-3/8 30-15/64 203593A
994-90 **
Manco: 8192 8-11/16 to 8-3/4 7-3/4 to 7-13/16 31-15/64 203594A
994-95 9-3/16 to 9-1/4 8-5/16 to 8-3/8 32-13/64 203595A
994-100 9-5/8 to 9-11/16 8-3/4 to 8-13/16 33-11/64 203596A
994-105 9-15/16 to 10 9-3/16 to 9-1/4 33-25/32 203597A
994-110 Murray: 37 x 98 10-3/4 to 10-13/16 9-13/16 to 9-7/8 35-9/64 203598A
994-120 11-11/16 to 11-3/4 10-15/16 to 11 37-7/64 203599A
994-130 13-1/16 to 13-1/8 12-1/8 to 12-3/16 39-25/32
Location for: 203589, 203591 B-2-3
Location Showroom
Overflow (203591): Bldg 2, D-1-2
Overflow(203791) : Bldg 4, D-2-1
** Belt 203593 was mis-labelled from . It is the correct belt, but just imprinted with incorrect label. The belt you receive will be noted with the correct label.
